Electro-galvanised steel panels

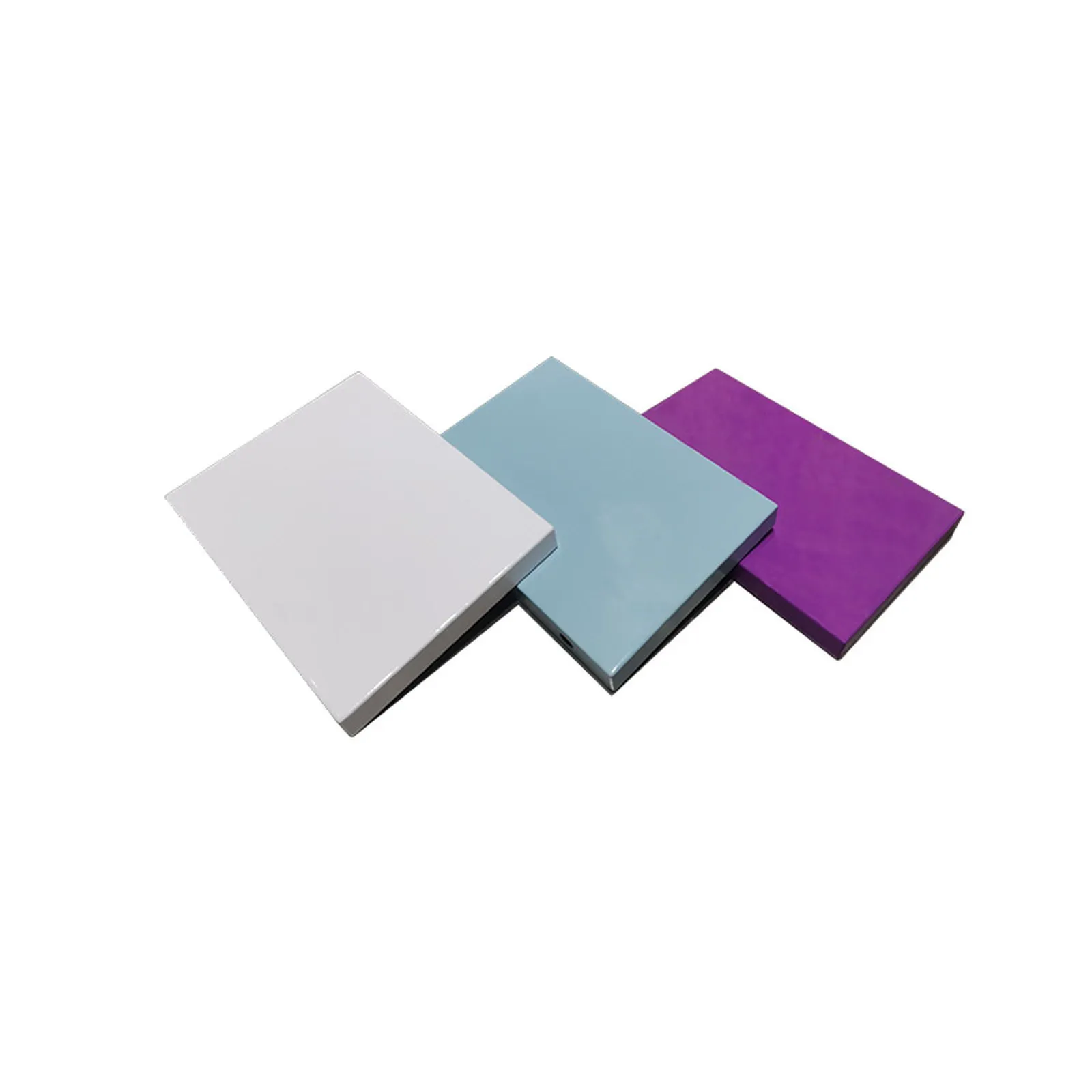

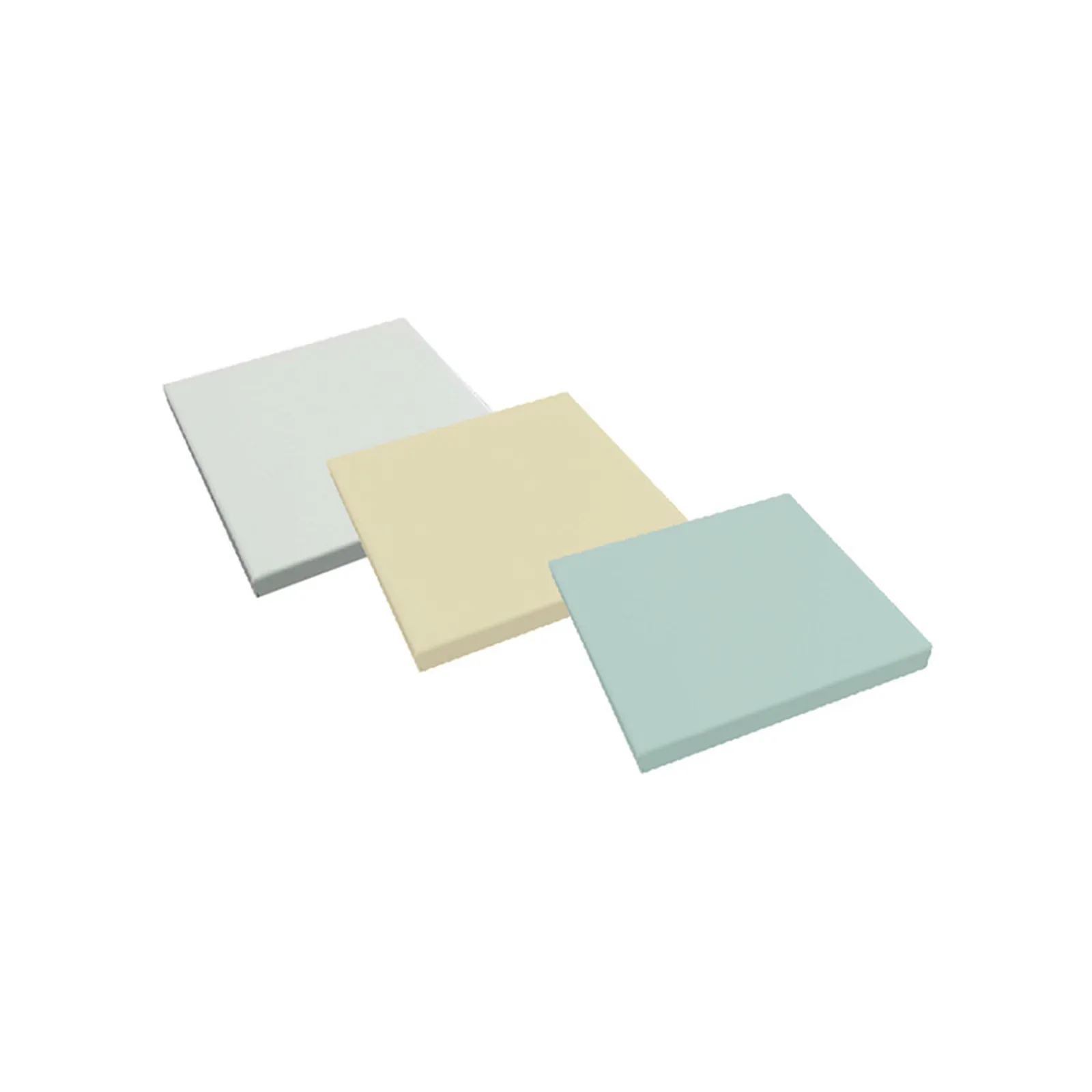

Electro-galvanised steel (electrolytic sheet) wall panels for operating theatres and cleanrooms, factory cut and folded, assembled on site with services routed in the wall cavity.
Description
Electro-galvanised steel panels are wall and lining panels made from electrolytic steel sheet — cold-rolled base metal that is zinc-electroplated, then phosphated, passivated, oiled and fingerprint-resistant coated, in commercial grades such as SECC, SECD and SECE. The surface needs no painting, is hard and smooth, and is corrosion-resistant and easy to clean and disinfect, which makes the sheet a standard wall material for operating theatres and cleanrooms. Panels are factory cut and folded and assembled on site by regulated methods, keeping the installation time short; the sealed welded or screw-fixed joints hold the room's airtightness and pressure stability, and wiring and piping run inside the wall cavity. Two systems are offered — hand-made panels (screw or weld fixing) and standard wall panels — quoted per the room drawings and bill of quantities.
Features
- Zinc-electroplated cold-rolled sheet with phosphate, passivation, oiling and fingerprint-resistant finish; no painting required.
- Smooth, hard surface: corrosion-resistant, easy to clean and disinfect.
- Factory-cut and folded panels assembled on site by regulated methods.
- Sealed joints hold room airtightness and pressure stability.
- Wiring and piping routed inside the wall cavity.
- Hand-made (screw or weld fixing) and standard panel systems.
Applications
- Operating theatre wall and ceiling linings
- Cleanroom wall systems in hospitals and pharmaceutical plants
Supply scope
What is supplied, and what stays with the buyer.
- Wall panels with cut and folded sheet, fixing system and sealing accessories, quoted per the room drawings and bill of quantities.
- Quoted with panel layout, sheet specification and packing data.
- Installation, sealing and testing on site are carried out by the buyer or the buyer's contractor.
Configurations
Fixed configurations that can be quoted.
A configuration code fixes the dimensions, electrical data, materials and documents. Quote requests that reference a code skip the specification round.
What we need to quote
Inputs that fix the configuration.
- 01
Room drawings with wall areas, heights and openings
- 02
Panel system (hand-made or standard), fixing method and sheet grade
- 03

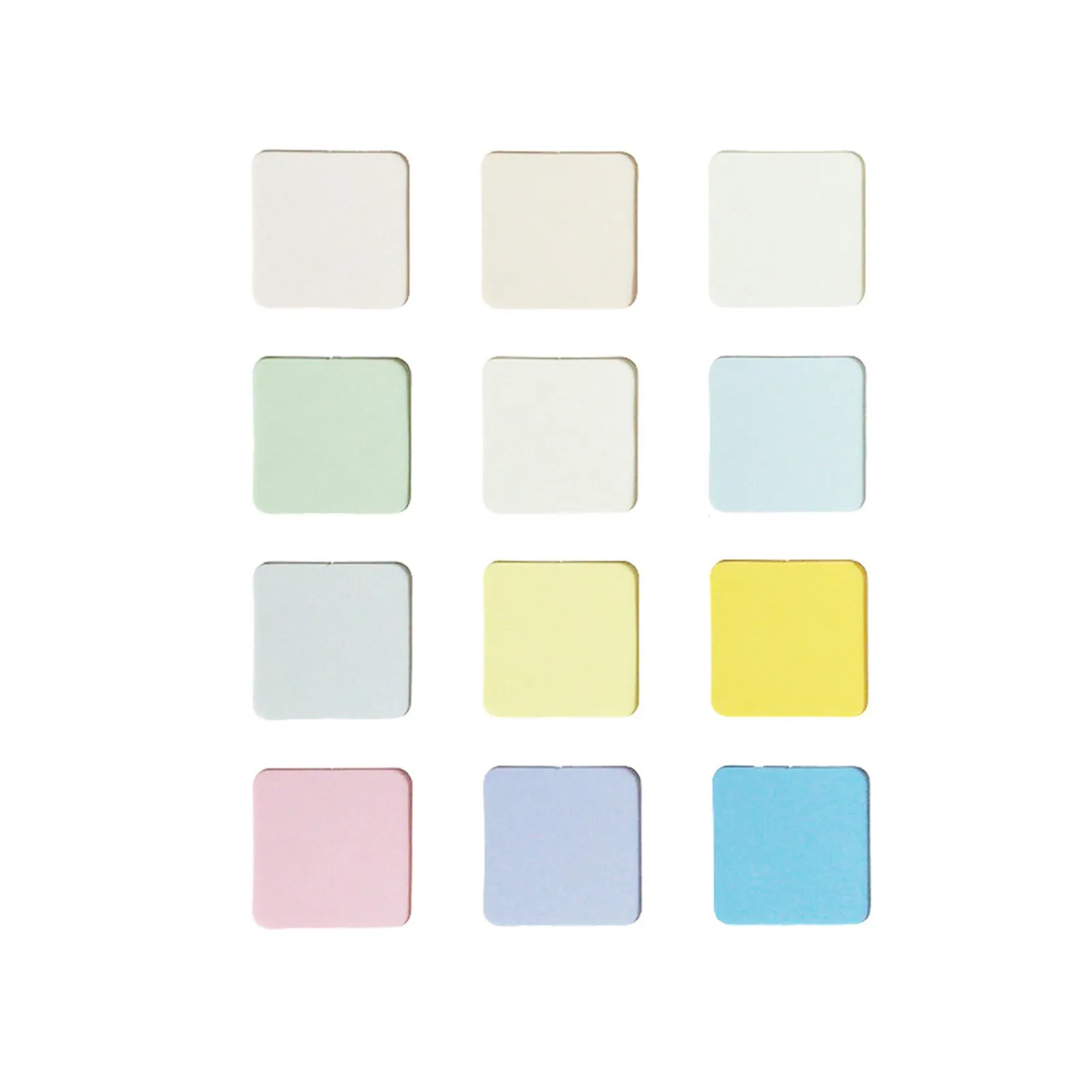

Colour / finish selection and corner, door or column details
- 04
Bill of quantities or panel schedule
- 05
Destination country or port
Documents
What ships with the quotation and the goods.
Documents are tied to configurations. Items marked as sent with the quotation are shared with qualified enquiries and are not published here.
- Specification sheetSpecification sheetBeing prepared
Packing and spare parts
Freight planning and first-line maintenance.
Packing
Packing data per unit is stated with each quoted configuration.
Spare parts
Spare parts are listed with each quoted configuration.
Request a quotation
Quote electro-galvanised steel panels as a fixed configuration.
A quotable request names the product family, the key specifications or the fact that they are still open, the quantity, the destination and who will install on site.
