Automatic roll filters

Automatic roll-type air filters for pre-filtration of ventilation and air-conditioning intakes, in standard, self-cleaning, explosion-proof and duct-type versions; the roll of media advances automatically on pressure-difference signal, and the frame size is fixed per configuration.

Automatic roll filter with a top media roll and a lower control section, photographed on a white background.

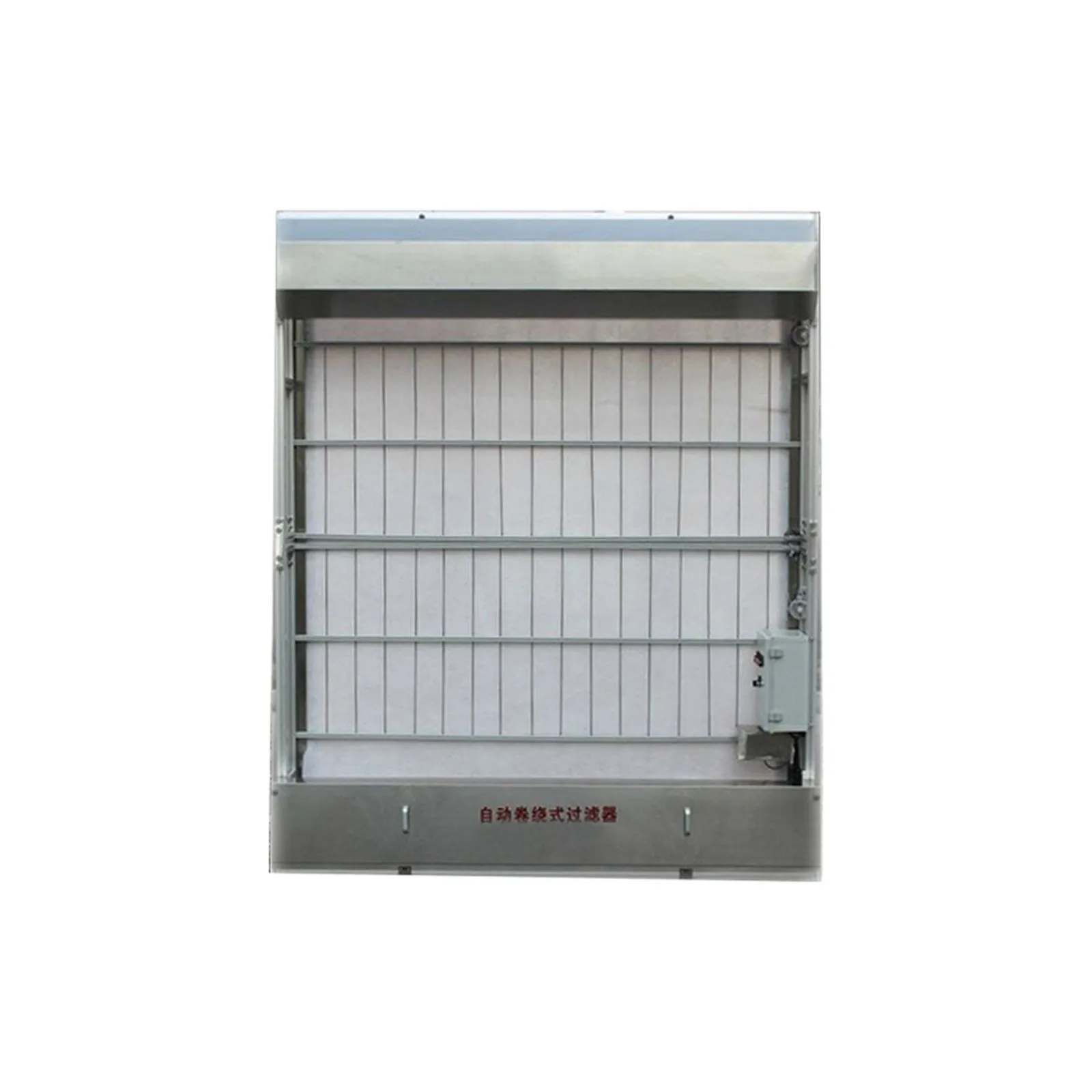

Floor-standing automatic roll filter with a media roll above a cabinet, photographed on a white background.

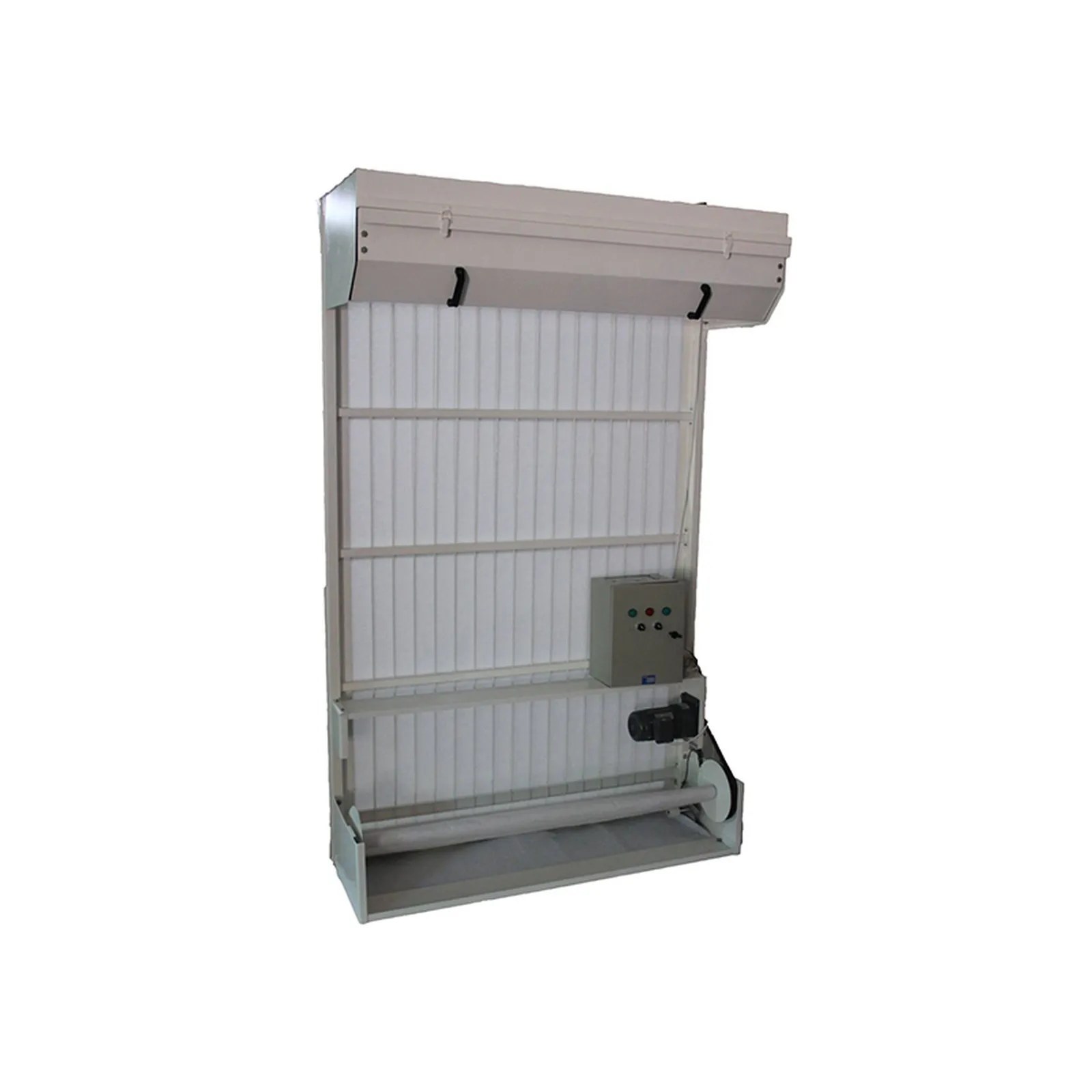

Duct-mounted automatic roll filter with a media roll across the top, photographed on a white background.

Description

An automatic roll filter converts the pressure difference across the media into a sensor signal and advances a fresh roll of filter media automatically, so the pre-filter stage keeps its airflow without manual media changes. The frame is metal - powder-coated steel, aluminium extrusion or stainless steel - and suits harsh environments. A photoelectric control tracks the media, with an LCD display of status, local audible and visual alarms and a remote alarm contact. Four versions are offered. The standard version covers general ventilation pre-filtration. The self-cleaning version adds a module that brushes the media roll to extend its life between changes. The explosion-proof version is built for areas with flammable media; the required Ex rating, for example Ex d IIB T4, is confirmed with the order. The duct-type version is built into rectangular or circular ductwork, runs under high negative pressure, and carries a large media roll for long service intervals and continuous year-round operation.

Features

  • Media advances automatically on pressure-difference signal; no manual media changes.
  • Metal frames in powder-coated steel, aluminium extrusion or stainless steel.
  • Photoelectric media tracking with LCD status display, local alarms and remote alarm contact.
  • Four versions: standard, self-cleaning, explosion-proof and duct-type.
  • Duct-type runs under high negative pressure with a large media roll for long intervals.
  • Rated airflow matrix by unit width and height in the parameter table.

Applications

  • Wastewater plant blower intake filtration
  • Textile plant air-conditioning return air
  • Automotive workshop ventilation
  • Industrial ventilation for equipment cooling
  • Central air-conditioning pre-filtration stages
  • Metro, civil-defence and other plants with frequent media changes

Materials, performance and parameters

Catalogue data for this family.

Catalogue values describe the family. The quotation for a configuration is the binding document.

Model05 / 152406 / 182907 / 213408 / 243909 / 274310 / 304811 / 152412 / 182913 / 213414 / 243915 / 2743
03 / 91464138702109911328015569178582014722436247252701429038
04 / 1219875611881150061813121256243812750630631337563688140007
05 / 15241109915060190212298226943309053486638827427884674950711
06 / 18291344118239230362783332631374284222547022518205661761415
07 / 21341578421417270513268438318439514958555218608526648572119
08 / 24391812724596310663753544005504725694463414698837635382823
09 / 27432046927775350814238649692569986430471609789158622193527
10 / 304822812309453909647238553796352171663798058794796088104231
11 / 3353251553413343111520896106770045790228800096976105956114935
12 / 36582749737312471265694066754765688638296196106010115824125639
13 / 396229840404905114161791724418309193741104392115042125692136343

Values are rated airflow in m3/h for the standard version at the given unit width (rows) and unit height (columns). Source model codes repeat 1524-2743 mm for codes 11-15 as printed; this is kept as transcribed. Self-cleaning, explosion-proof and duct-type versions are quoted by frame size and media specification.

Supply scope

What is supplied, and what stays with the buyer.

  • Filter frame with media roll, drive, control box and sensors, quoted as a fixed configuration by frame size and version.
  • Explosion-proof execution quoted with the Ex rating confirmed by the buyer; duct-type quoted with duct connection sizes.
  • Media rolls as consumables listed with consumption estimate per configuration.
  • Mounting, duct connection and electrical hook-up on site stay with the buyer's installer.

Configurations

Fixed configurations that can be quoted.

A configuration code fixes the dimensions, electrical data, materials and documents. Quote requests that reference a code skip the specification round.

Configurations for this family are quoted on request.

What we need to quote

Inputs that fix the configuration.

  1. 01

    Required frame width and height (or duct size for the duct-type)

  2. 02

    Airflow and permitted initial resistance at the pre-filter stage

  3. 03

    Version required: standard, self-cleaning, explosion-proof or duct-type

  4. 04

    For explosion-proof areas: the required Ex rating and area classification

  5. 05

    Power supply available on site and alarm interface requirements

  6. 06

    Quantity and destination country or port

Documents

What ships with the quotation and the goods.

Documents are tied to configurations. Items marked as sent with the quotation are shared with qualified enquiries and are not published here.

  • Specification sheetSpecification sheet
    Being prepared

Packing and spare parts

Freight planning and first-line maintenance.

Packing

Packing data per unit is stated with each quoted configuration.

Spare parts

Spare parts are listed with each quoted configuration.

Request a quotation

Quote automatic roll filters as a fixed configuration.

A quotable request names the product family, the key specifications or the fact that they are still open, the quantity, the destination and who will install on site.
