V-bank HEPA filters
Box-type HEPA filters with mini-pleat packs arranged in a V formation, giving high airflow capacity and low structural resistance in air handling units.
Description

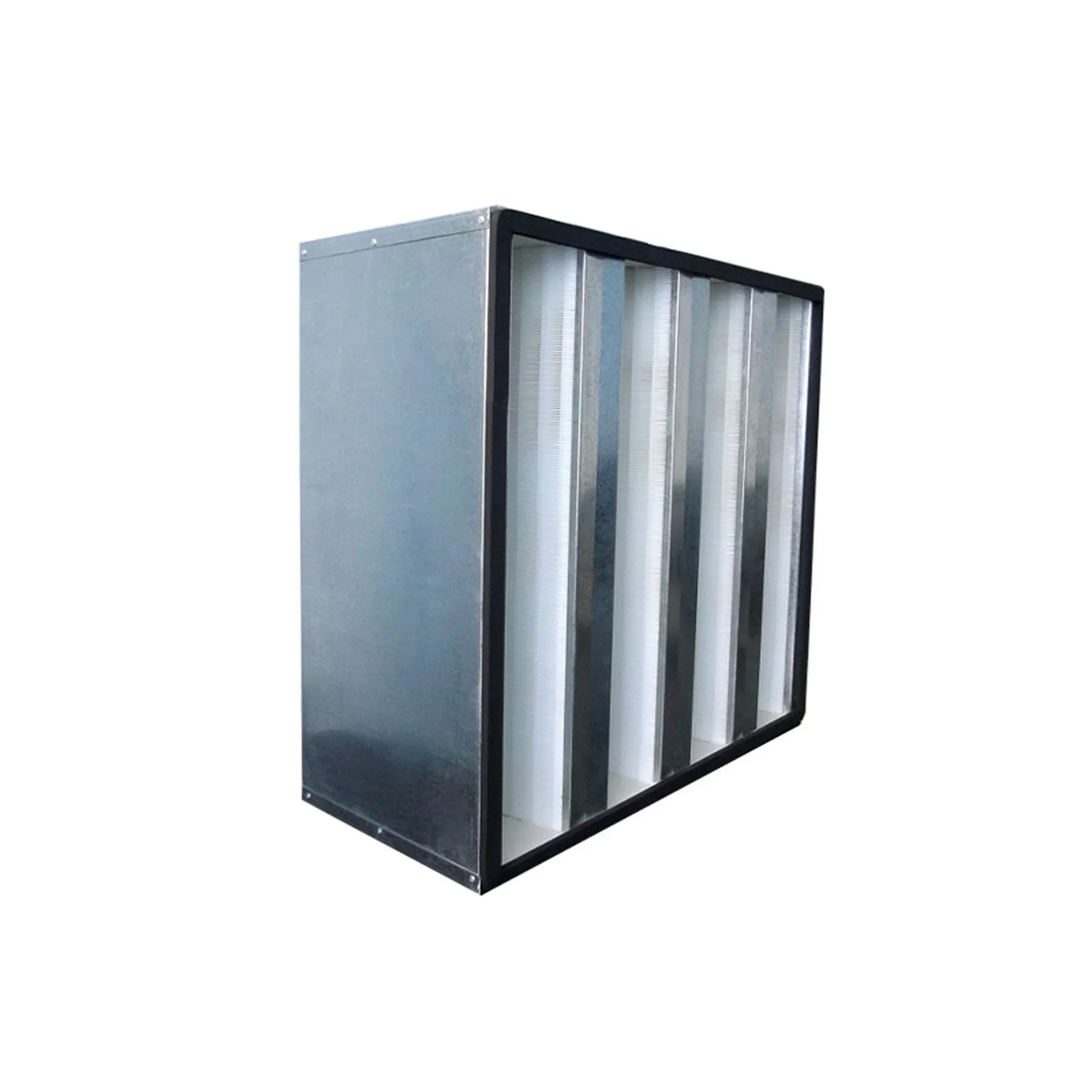

V-bank HEPA filters are box-type HEPA filters: multiple mini-pleat packs of ultra-fine glass fibre media are arranged in a V formation inside a rigid casing, so a shallow filter holds a large media area and treats high air volumes at moderate pressure drop. Packs are fixed with hot-melt adhesive. The V structure lowers structural resistance, and optional mounting flanges simplify installation in air handling units. The source catalogue lists H14 to EN 1822 with efficiencies of 99.99 % or higher at 0.3 µm.
Features
- V-formation mini-pleat packs for high airflow at moderate initial resistance.
- Ultra-fine glass fibre media, H14 to EN 1822 per the source table.
- Rigid casing with optional mounting flanges for air handling units.
- Continuous sealing construction that stays elastic after installation.
Applications
- Air handling units serving aerospace, electronics and semiconductor plants
- Biopharmaceutical cleanrooms and hospitals
- Food processing with high cleanliness requirements
- Retrofit of deep-bed final filters where depth is limited
Materials, performance and parameters
Catalogue data for this family.
Catalogue values describe the family. The quotation for a configuration is the binding document.
| Model | Nominal size W×H×D (mm) | Rated airflow / initial resistance (m³/h)/(Pa) | V-cell count | Media area (m²) | Airflow / resistance 1 (m³/h)/(Pa) | Airflow / resistance 2 (m³/h)/(Pa) | Recommended final resistance (Pa) | Efficiency EN 1822 |
|---|---|---|---|---|---|---|---|---|
| BV-B-A001 | 296×592×292 | 950/270 | 3 | 8.4 | 1180/335 | 1410/400 | 400 | H14 |
| BV-B-A002 | 305×610×292 | 1000/280 | 3 | 8.7 | 1250/345 | 1500/415 | 400 | H14 |
| BV-B-A003 | 592×592×292 | 1800/270 | 3 | 16.4 | 2350/335 | 2820/400 | 400 | H14 |
| BV-B-A004 | 610×610×292 | 1850/280 | 3 | 16.9 | 2500/345 | 3000/415 | 400 | H14 |
| BV-B-A005 | 592×592×292 | 2380/280 | 4 | 21.9 | 2880/340 | 3200/385 | 400 | H14 |
| BV-B-A006 | 610×610×292 | 2450/280 | 4 | 22.6 | 3050/350 | 3400/400 | 400 | H14 |
| BV-B-A007 | 592×592×292 | 2950/295 | 5 | 27.4 | 3200/325 | 3580/370 | 400 | H14 |
| BV-B-A008 | 610×610×292 | 3050/295 | 5 | 28.2 | 3400/335 | 3800/385 | 400 | H14 |
Transcribed from the source catalogue parameter table. Airflow/resistance pairs give the resistance at two operating points below and above the rated airflow. The source lists further sizes and classes (F5–F9, H10–H14) as available on request.
